ping2020i

20201
Integrated all-in-one ADS-B, GPS, and Baro Ping2020i is the world’s smallest and lightest full range ADS-B transceiver.  ADS-B helps aircraft operators sense and avoid possible collisions through a constant exchange of real time position data.  ADS-B is mandated by the FAA for all aircraft in the U ...Read more
€ 2.655,95 (€ 2.195,00 excl VAT)


The add to cart button will appear once you select the values above
  • Description
  • Downloads

Integrated all-in-one ADS-B, GPS, and Baro

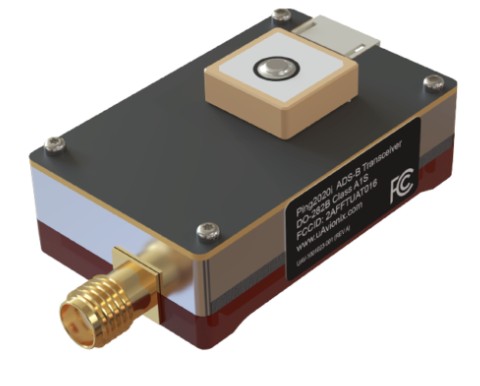

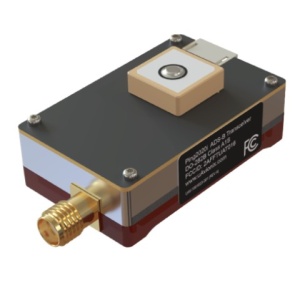

Ping2020i is the world’s smallest and lightest full range ADS-B transceiver.  ADS-B helps aircraft operators sense and avoid possible collisions through a constant exchange of real time position data.  ADS-B is mandated by the FAA for all aircraft in the U.S. National Airspace by 2020.   Used now primarily on manned aircraft, uAvionix has miniaturized the equipment to make it usable for small drones.  ping2020i measures 25mm x 39mm x 12mm, which is a fraction of the size of earlier units.  At just 20 grams, ping2020i is ideal for UAS applications to improve safety with minimal impact to capability and performance.  ping2020i detects ADS-B aircraft within a 100 statute mile radius in real time, dramatically improving drone operator awareness of threats in the area including aircraft beyond line of sight.

ping2020i orders include everything you need to get up and running in minutes:

  • ping2020i UAT(978MHz) ADS-B transceiver
  • Power cable
  • ADS-B Antenna
  • Device programmer
  • Wiring harnesses for Pixhawk, Pixhawk 2
