Ready-made (or DIY) serial programming / configuration cable for uAvionix ping200X and ping200XR.
This is the connection cable only.
The USB to Serial Adapter with Cable can be bought separately on this website.
Connects your ping200X / ping200XR to a Windows PC with the optional USB to Serial Adapter with Cable so you can run the official ping200X Control & Config application (UAV-1004567-001) for ICAO address, SIL/SDA, registration, baud rate and all other installation settings.

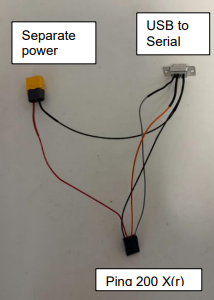

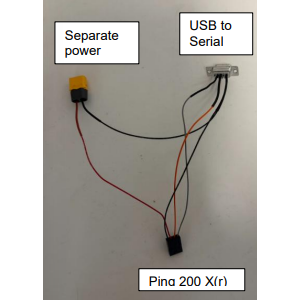

The cable is wired as a crossed (null-modem) connection exactly according to the official uAvionix colour coding using standard MOLEX connectors which needs to be mounted on the ping200X/ping200Xr wiring.
Wire connections
| Ping wire | Function | DB9 Female pin |
|---|---|---|
| Grey | TX from ping (data out) | Pin 2 (RXD) |
| Orange | RX to ping (data in) | Pin 3 (TXD) |
| Black | Signal Ground | Pin 5 (GND) |
| Red | Power (+V) – SEPARATE | DO NOT CONNECT |
Power connectors (standard version)
- Battery / power supply side: XT60 female
- Device side: Molex female (4-pin)
Different connectors are possible. On request we can fit the connector you need (if we have it in stock).
CRITICAL SAFETY NOTES (from official documentation)
- Never connect the Red (aircraft power) wire to the DB9 connector – this can damage the Serial adapter or the ping200X.
- Always power the ping200X from a separate 9–30 V / 11–33 V DC supply.
- Always fit a 50 Ω dummy load or proper antenna on the RF port before applying power.
Two options:
- Buy ready-made – we ship a fully assembled cable (DB9 connector + correctly wired flying leads or Molex female + XT60 female for the battery).
- Build it yourself – free one-page wiring guide available free one-page wiring guide available (or download from our support pages). Only three signal wires + separate power are required.
Control & Config App settings
Conn Type: Serial | Port: your COM port | App Baud: 57600 | Protocol: UCP
Then click START in the Control tab.
Official documentation: uAvionix ping200X / ping200XR User & Installation Guide (Utilities section) and support pages, support.uavionix.com
