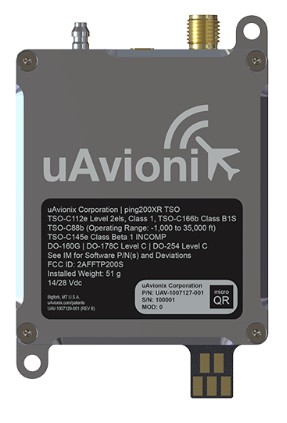

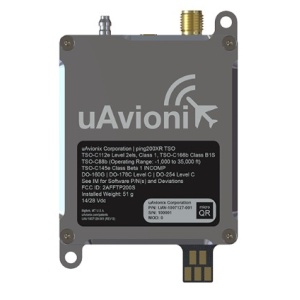

ping200XR TSO combines the technology of the TSO certified ping200X transponder with an internal TSO certified aviation GPS. Enabling airspace access, regulator, and Air Navigation Service Provider (ANSP) acceptance worldwide, ping200XR TSO enables your aircraft to be detected by Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B receivers.
Compact and Efficient
Weighing only 52 grams and drawing just 1.5 Watts, it surpasses heavier traditional transponders, ideal for Class 1 and 2 sUAS.
TSO Certified Integration
Combines Mode S ADS-B transponder and truFYX TSO SBAS GPS receiver, certified to RCTA DO-229E and TSO-C145e standards, ensuring compliance with global controlled airspace requirements.
Versatile Autopilot compatibility
Seamless integration with leading autopilot systems, enabling direct control via ground control station (GCS) or easy payload operation with uAvionix mini-controller.
Versatile Integration
Paired with the internal truFYX SBAS GPS receiver, ping200Xr delivers TSO-certified SIL 3 GPS data ensuring high accuracy and reliability for ADS-B Out.
What’s in the box?
– ping200XR TSO
– Certificate of Conformance
– Getting Started Card

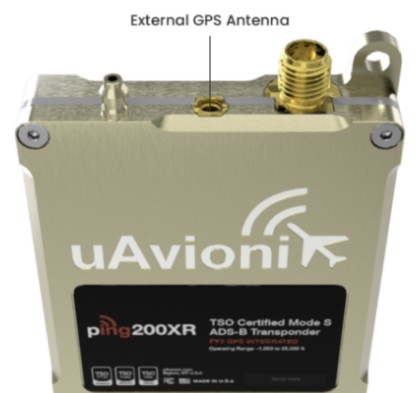

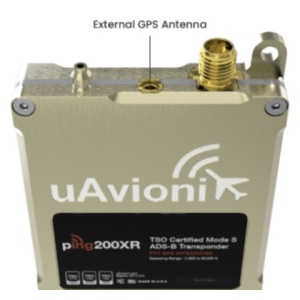

ping200XR TSO does NOT include the GPS antenna. A GPS antenna with MMCX connector is required for installation. Specifications are available in the User and Installation Guide.
GPS Antenna UAV-1007165-001 is available for non-certified airframes.
The ADS-B pingAntenna SMA 1090MHz is available for non-certified airframes.
