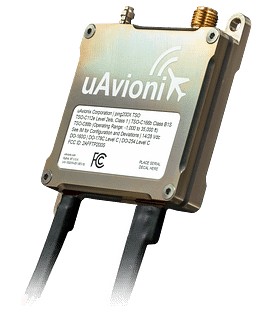

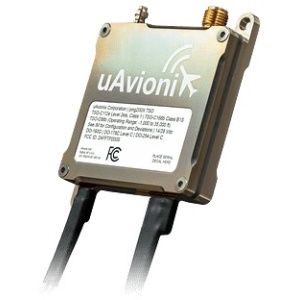

ping200X is the premier FAA TSO Certified Mode S ADS-B OUT transponder for UAS. Enabling airspace access, regulator and Air Navigation Service Provider (ANSP) acceptance worldwide, ping200X enables your aircraft to be detected by Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B IN receivers.
Low Power Consumption
Consumes only 1.5 Watts continuous power, peaking briefly at 4 Watts, making it highly efficient for longer missions.
High-Power ADS-B Transmission
Nominal 250W output at 1090 MHz, ensuring excellent signal reach and reliable radar detection.
Robust Environmental Tolerance
Operational temperature from -45°C to 70°C, tested to DO-160G environmental standards.
Dynamic Control
Integrates seamlessly with autopilots or can operate independently as a payload with the uAvionix mini-controller.
Altitude Encoder Included
Internal TSO-C88b altitude encoder provides accurate pressure altitude reporting up to 35,000 ft.
Easy Installation
Simplified RS-232 interfaces for control and position data streamline installation and configuration.
What’s in the box?
– ping200X TSO
– Certificate of Conformance
– Getting Started Card
